Vinyl Wastes

The Aquamox tile over shower tray is precontoured to a specific waste point which provides a quick and cost-effective alternative to the traditional screen methods of tiled shower base.

Product Details


        CODE
        Description

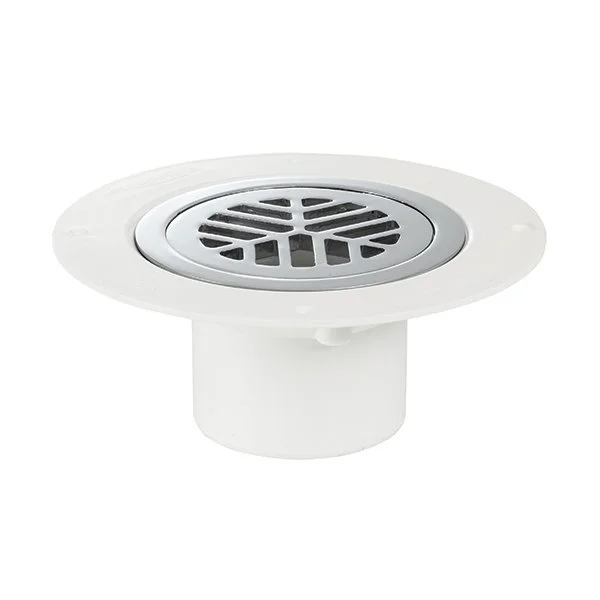

        STS104-80
For Vinyl Floors HiFlow Bottom Exit 80mm

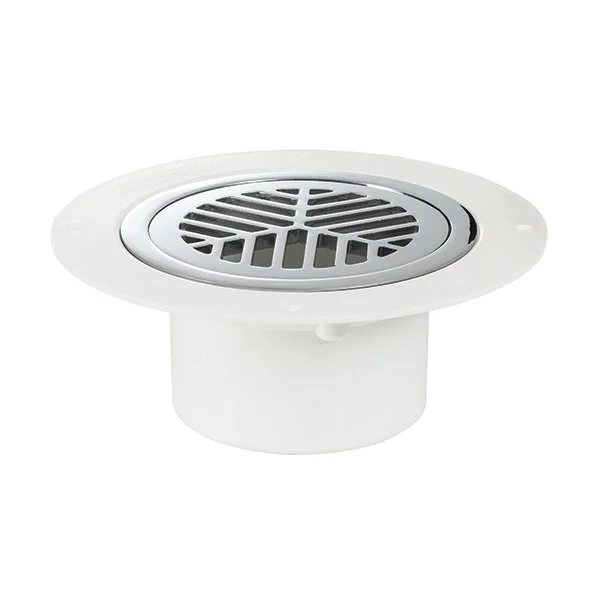

        STS104
For Vinyl Floors HiFlow Bottom Exit 100mm

        STS104-ST
For Vinyl Floors HiFlow FWG 100×50

All measurements in millimetres.

Resources

DWG (AutoCAD/Revit) CAD (Solidworks)

STS104-80 (DWG)

PDF Dimensions

STS104-80 (PDF)

STS104 (DWG)

STS104 (PDF)

STS104-ST (DWG)

STS104-ST (PDF)
