Overview
✓ Lightweight and Durable
✓ Easy to cut and Install
✓ Cost Effective
✓ Pre-contoured to Drain
✓ Fast Curing time
✓ Heat and Sound Insulation
✓ Adapt to any size
✓ Will not rot or absorb moisture
Aquamox is a modular foam construction board designed to make building your wet room or tiled shower a quick, easy and clean process.
The system has a wide range of shapes and sizes that cater for all designs of wet room area including curved walls, liniar drain systems, soap recesses and much more.
It is lightweight yet very durable which means a simpler installation processes cutting days off the traditional concrete screed methods.
Each peice can be easily cut and trimmed with a stanley knife or saw to easily work around the common challenges in construction.
In addition to its benifits of flexibility and simplicity it acts as an excellend insulator for heat and sound.
The Aquamox wet room system has transformed the way tiled showers are built in today’s homes.

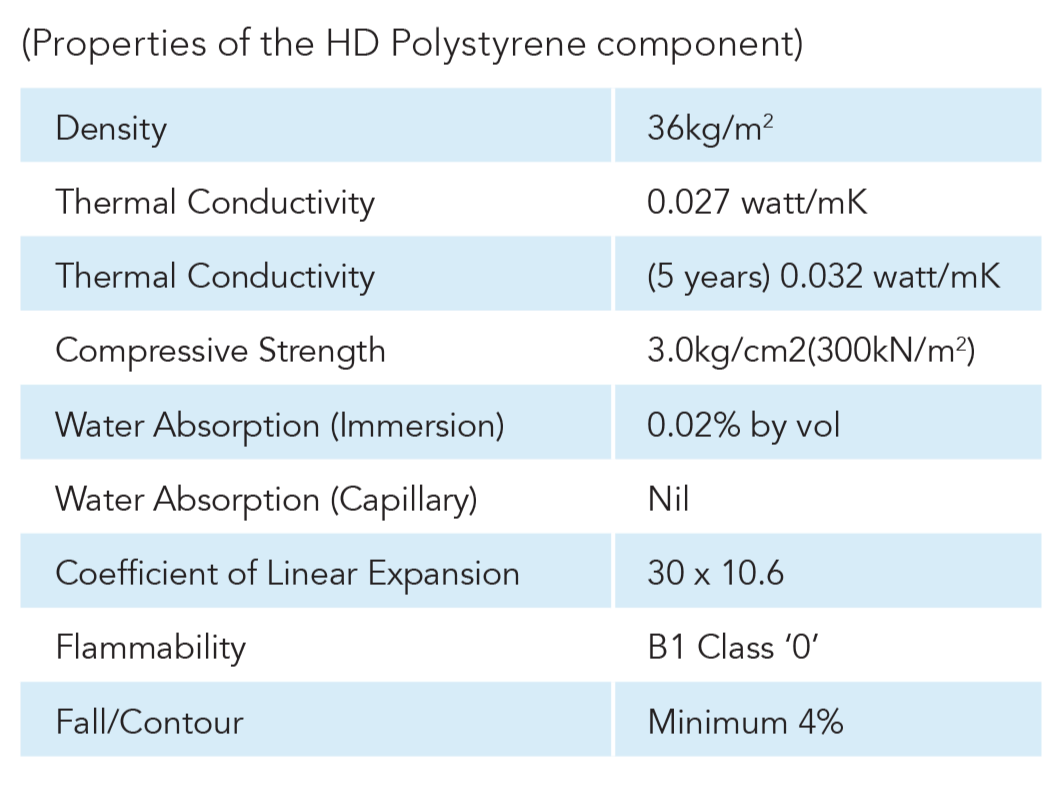

Technical Details
Laminate Structure
Aquamox is a high density foam board core coated with a fibreglass mesh and polymer cement mortar on both sides. This design gives the extra rigidity and strength while remaining lightweight. It also creates an impervious surface for added peace of mind. Its make up gives this product excellent sound and thermal insulation properties.
Simple Installation Process.
1: Surface Prep
Aquamox must always be installed on a flat / level surface that is clean and dust free. Flanges are to be flush with the floor and ensure that framing is spaced at 300mm centres for wall boards.
2: Measure & Cut
When measuring a space always ensure you measure twice and cut once. Trimming can be done with either a craft knife or a hand saw. Ensure a straight and tidy cut for easier fitting together. Mitre join the hob edges for a cleaner finish and ensure the fall is toward the shower waste.
3: Fixing
Always dry fit before applying non solvent adhesive. Apply a generous 8mm bead of adhesive in lines at 100mm intervals. Adhesive can act as a self-leveler, within reason. Apply more generously to areas where required. When screwing wall board space the fixings to 300mm where the framing is located. Ensure that the washer is used.
4: Curing
The Aquamox adhesive does not require any air flow for curing therefore any Aquamox surface can be waterproofed immediately if the product is not moved or disrupted during application. Any adhesive joins being waterproofed will require 1 hour for the initial skinning time.
